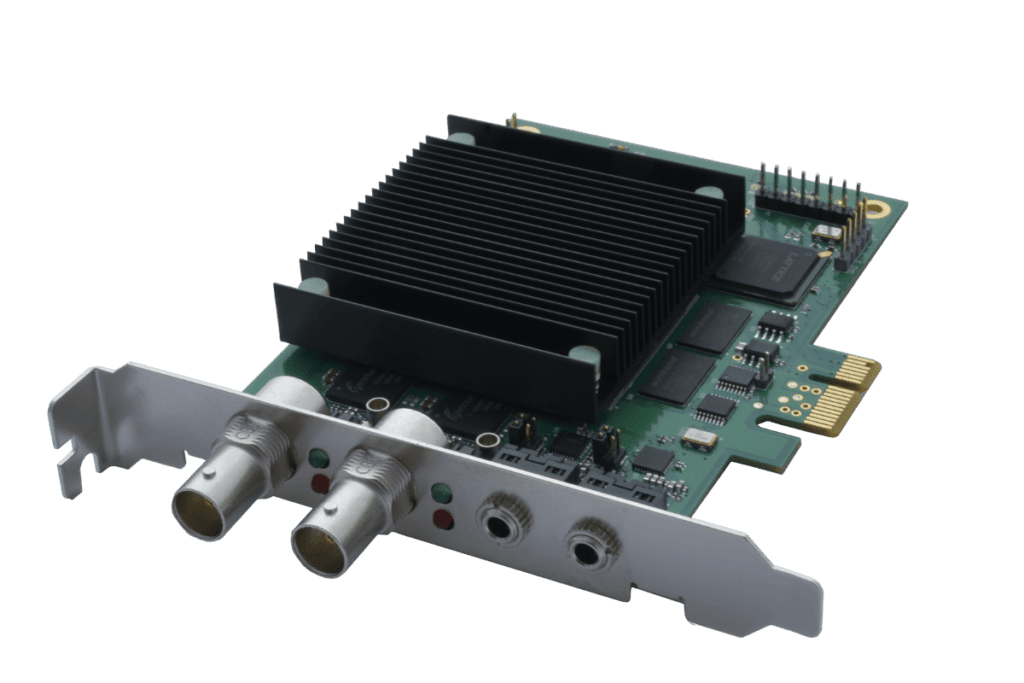

LT-122
Dual SDI capture card with hardware compression

The LT-122 is designed for dual-channel SDI workflows that require continuous recording or streaming. Two independent hardware encoders deliver real-time H.264 compression from SD up to 1080p60, offloading the host system for reliable 24/7 operation.

  • Dual SDI inputs with embedded audio support
  • Real-time H.264 hardware compression
  • Two channels hardware encoders
  • From 1920x1080p60 down to 720x480i
  • High reliability, 24/7 operation
1250

€, single unit

Specifications and Features

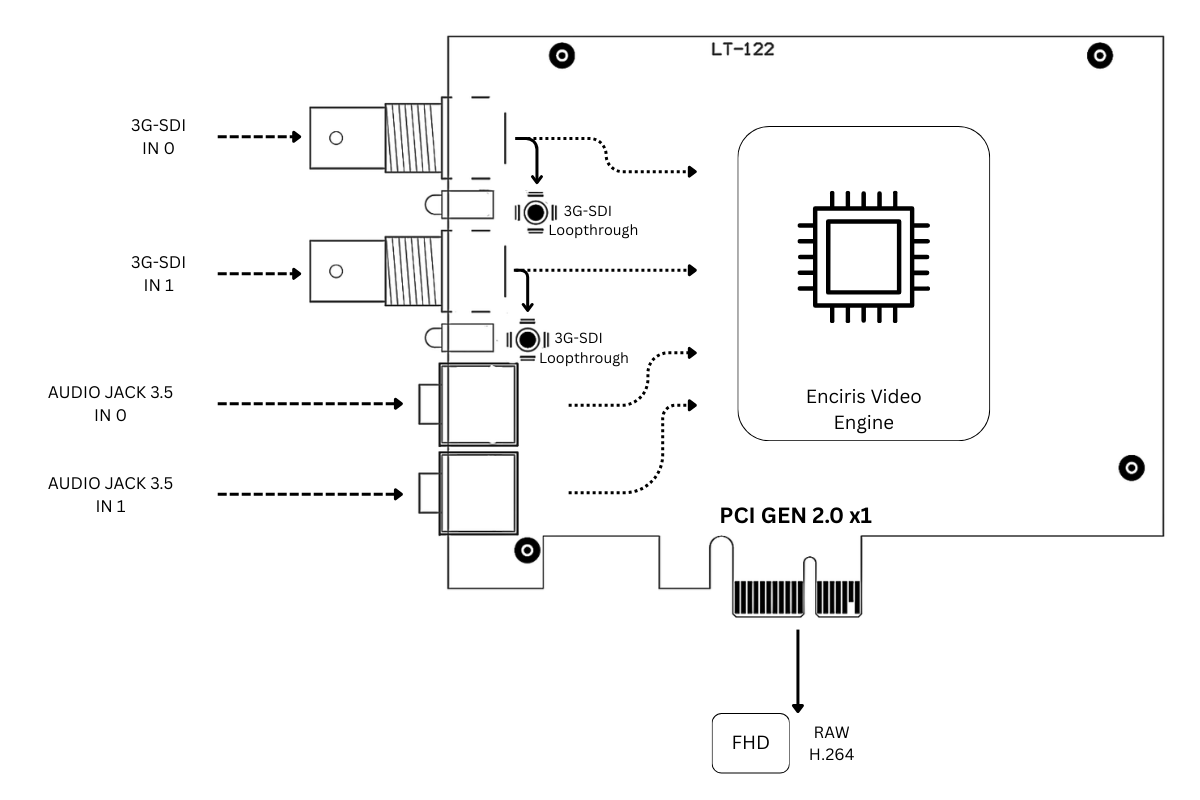

Interface

Inputs:

  • 2x SD/HD/3G SDI
  • 3D inputs supported
  • 2x 3.5 mm audio jack


Outputs:

  • 2x 3G-SDI loopthrough (optional)


Host:

  • PCIe Gen2 x1 or higher
  • Multiple LT-100 cards per system for scalable expansion

Video Engine

  • Real-time hardware-based video compression
  • Simultaneous uncompressed video capture
  • Advanced hardware deinterlacing
  • Hardware video preprocessing prior to compression:
    • Downscaling
    • Noise reduction
    • HSBC
    • Text overlay
  • Configurable compression parameters (bitrate control, GOP, …)

Signals

  • Support for broadcast standards from SD (PAL, NTSC) up to 1080p60
  • Progressive and interlaced formats supported
  • Support for selected VESA CVT and GTF timing standards
  • Extended resolution support available on request
  • Automatic input format detection
  • 2-channels audio PCM, 48 kHz

Physical and environmental

  • 91 × 110 mm, 1-slot PCIe bracket, ~140g
  • 6 W typical, powered from PCIe slot
  • Operating: 0 °C to 70 °C (extended options available)
  • CE certified, 2-year warranty

Software

Shared across the entire LT-100 series: Windows and Linux support, C SDK, DirectShow filter with configuration application, and a demo renderer application.

Downloads

LT122 Product Brief r2

758 KB | 02/12/2026

Documentation

4 MB | 02/12/2026

SDK 2.91.2

Windows: 111 KB | Linux: 3 MB

Installer 2.91.2

Win x64: 12 MB | Win x86: 13 MB | Linux: 11 MB

Need a different configuration?

Enciris LT-102 PCIe video capture card with H.264 hardware encoder supporting SD to Full HD inputs

LT-102

INPUTS
OUTPUTS
1x DVI-I
1x S-video
1x Composite
1x SDI (option)
None

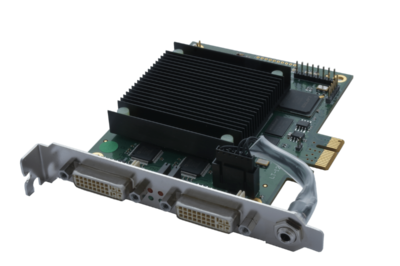

Enciris LT-124 dual channel DVI-I PCIe video capture card with hardware compression for SD and Full HD video acquisition
