CH-007
Edge AI development platform for NVIDIA Jetson Orin NX & Nano
The CH-007 is a compact carrier board designed to unlock the full potential of NVIDIA Jetson Orin NX and Nano modules — with a true PCIe x4 slot, dual NVMe storage, and a complete software toolkit to get from unboxing to running inference in minutes.
- True PCIe Gen3 x4 with 12V — accepts full-size expansion cards
- Dual M.2 NVMe slots for OS and data storage
- One-command environment setup and flash scripts
- Customizable Ubuntu rootfs
- Compatible with NVIDIA Jetson Orin NX 8/16 GB and Orin Nano 4/8 GB modules
- Designed and assembled in France
Choose your configuration
The CH-007 is available in several configurations to match your project needs — from the board alone to a complete ready-to-develop kit.

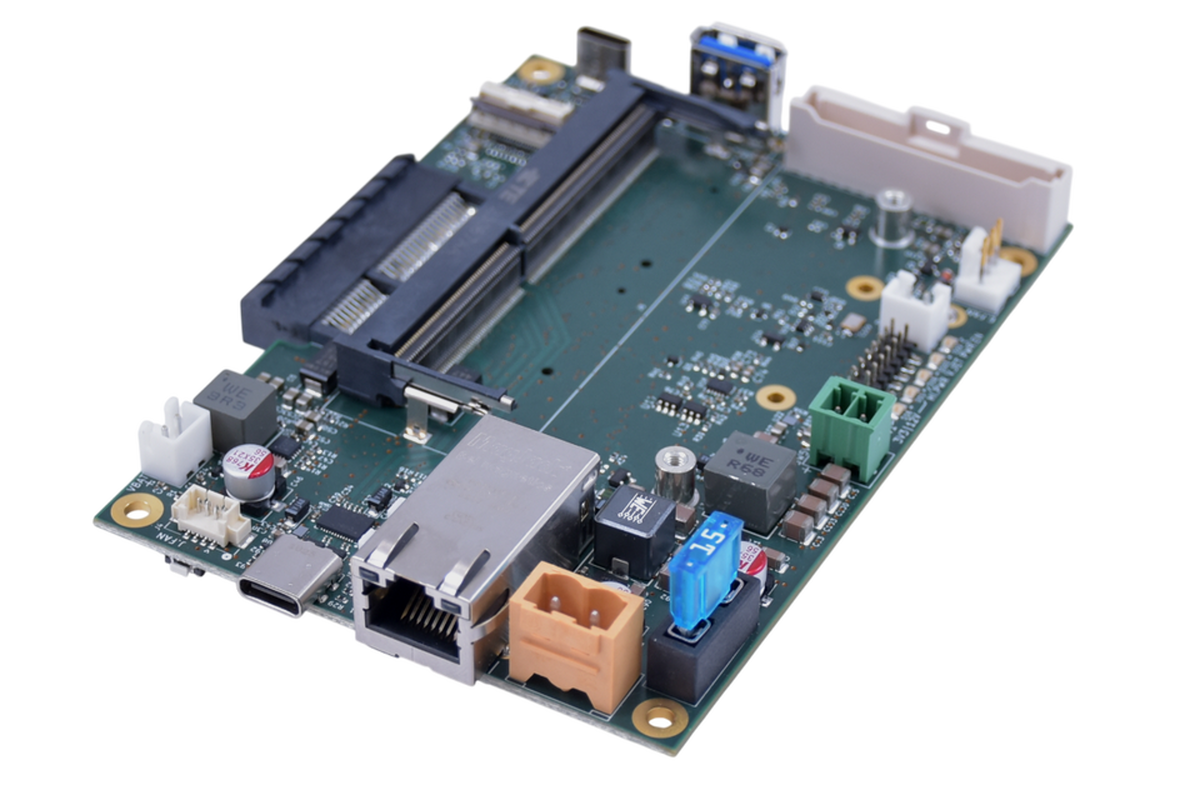

CH-007 Board
The carrier board alone, for integration with your own Jetson Orin module.
- CH-007 carrier board
- Setup & flash scripts
- Documentation

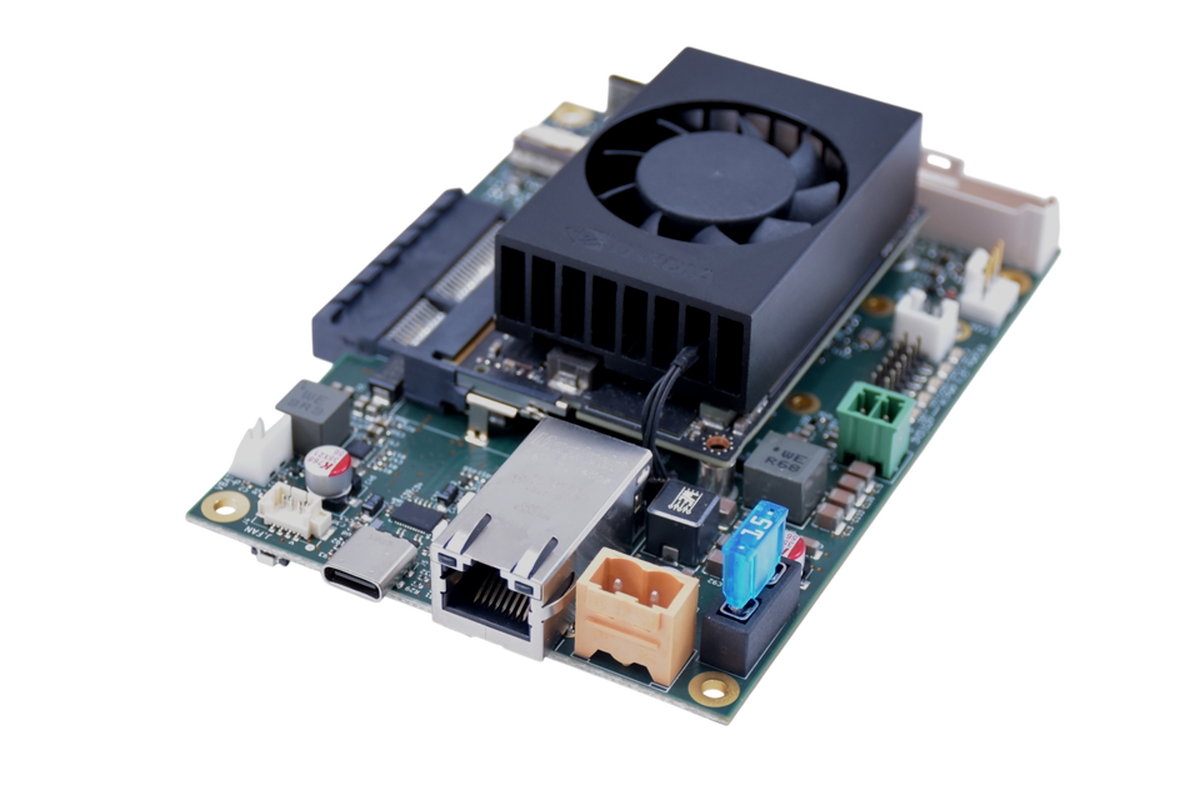

Developer Kit
Ready-to-develop package with module and storage included.
- CH-007 carrier board
- NVIDIA Jetson Orin NX 8 GB
- M.2 NVMe SSD 1 TB
- Setup & flash scripts

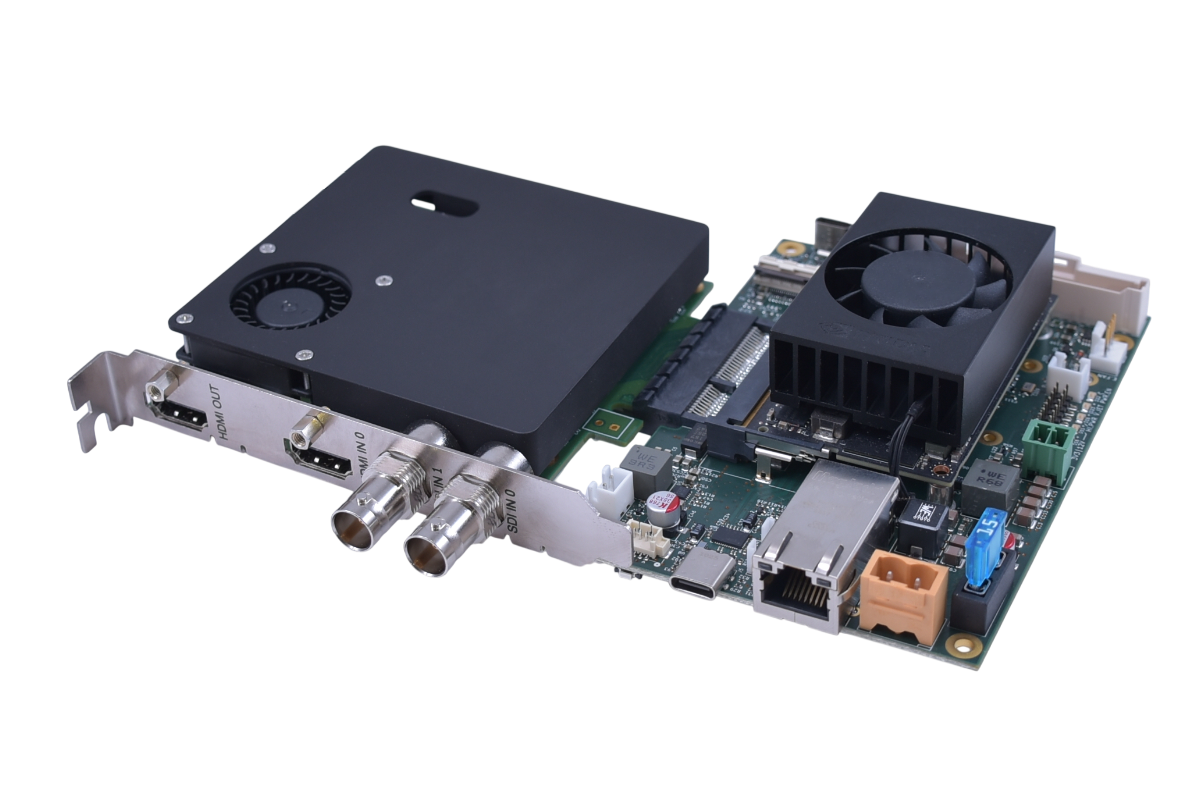

Video Development Kit
Developer Kit bundled with the LT-313 4K capture card for AI video pipelines.
- CH-007 carrier board
- NVIDIA Jetson Orin NX 8 GB
- M.2 NVMe SSD 1 TB
- LT-313 capture card
- Setup & flash scripts
Designed for real expansion
Most Jetson carrier boards limit expansion to M.2 slots. The CH-007 goes further — a genuine PCIe x4 slot with 12V power opens the door to full-size cards: video capture, networking, custom accelerators. Combined with dual NVMe and a complete I/O set, it covers both development and embedded deployment.
PCIe Gen3 x4 — 12V
Full-size slot with 12V power rail. Accepts professional expansion cards — capture, networking, accelerators. Unique among compact Jetson boards.
Dual M.2 NVMe
Two independent NVMe slots (PCIe x2 + x1). Dedicate one to the OS, one to data or model storage — no compromise needed.
USB & connectivity
2× USB-C Gen 3.0 including recovery mode, 1× USB-A Gen 3.0, Gigabit Ethernet, HDMI output via extender.
GPIO & power
SPI, I2C, I2S headers, battery connector, fan connector for Jetson heatsink, onboard fuse for reliable embedded deployment.

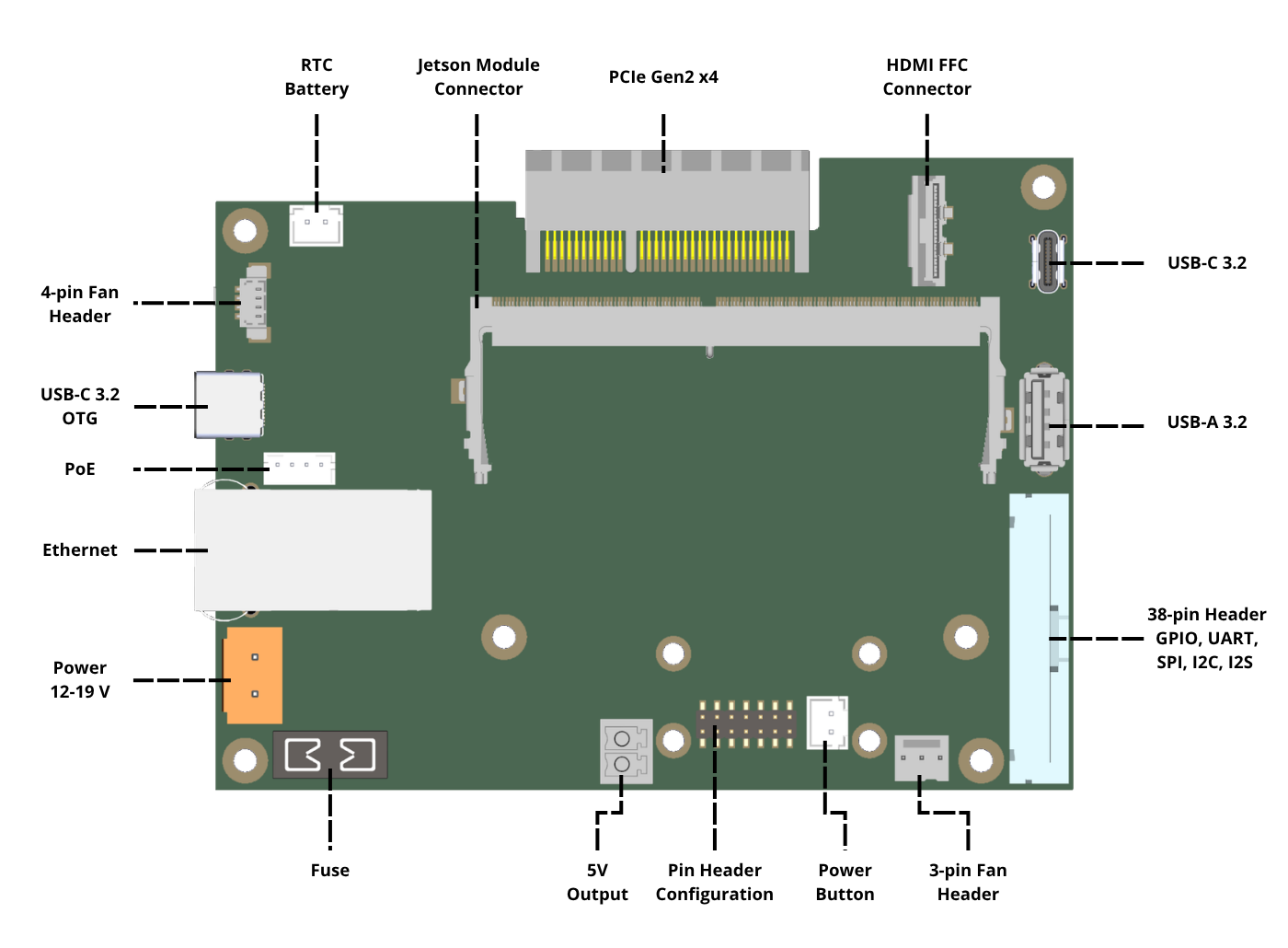

Top View

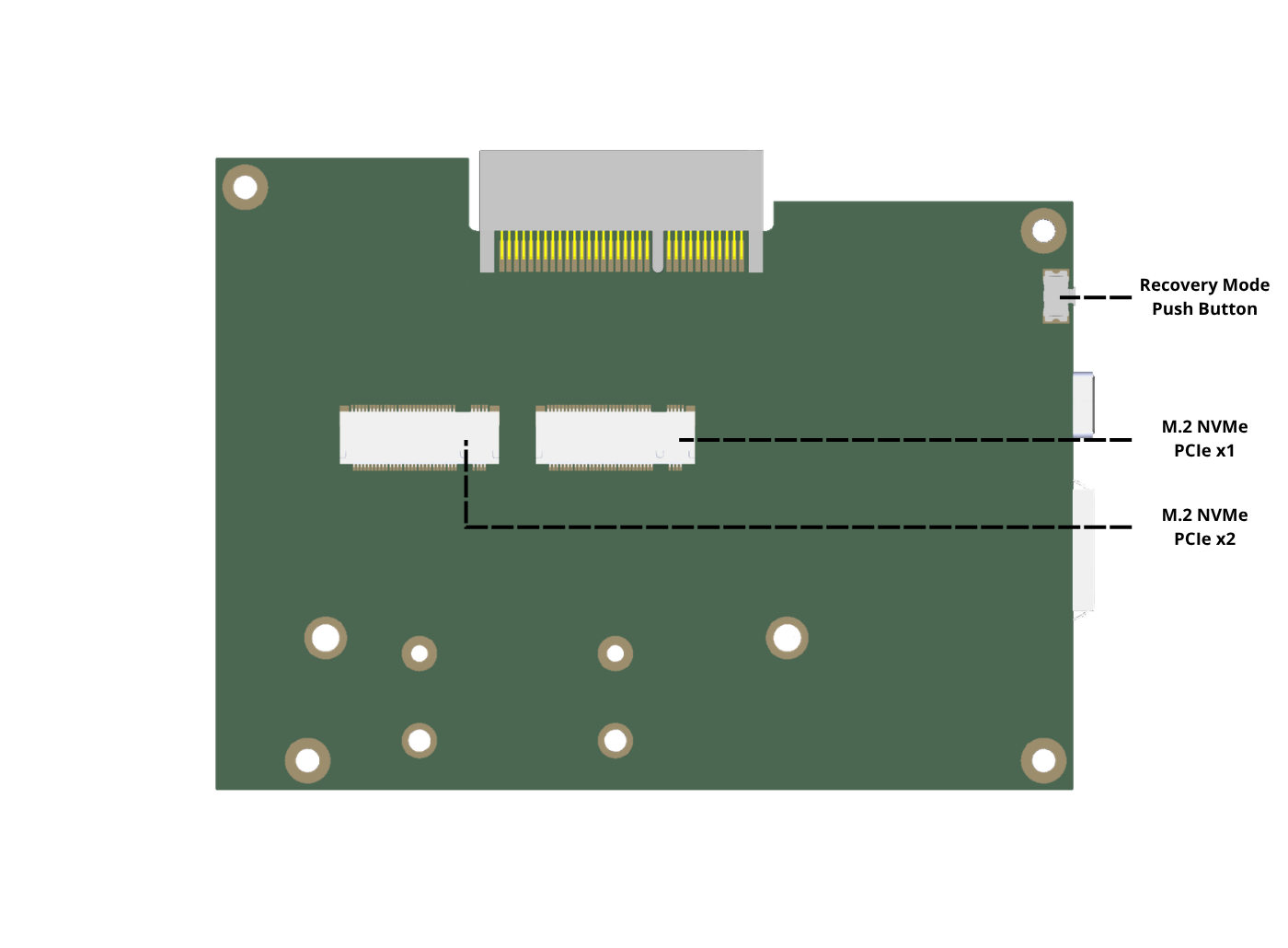

Bottom View
From unboxing to running inference
Setting up a Jetson development environment typically takes days — flashing the module, configuring the OS, installing the full SDK stack. The CH-007 ships with a set of scripts that automate the entire process, from a bare module to a fully configured Ubuntu environment ready for AI development.
Environment Setup Script
Installs the complete NVIDIA JetPack stack and all SDK components in a single command — no manual dependency resolution or version conflicts.
Flash Script
Automates the full flash sequence for module and SSD. Handles recovery mode, partition layout, and all CH-007-specific boot configuration.
Custom Ubuntu rootfs
Recompile a trimmed Ubuntu image with a custom package list, lighter footprint while retaining full GNOME desktop support or completly headless configuration.
Pre-configuration File
Inject locale, users, network and package settings at flash time. The board boots fully configured — no post-flash setup required.
Specifications
Connectivity
PCIe expansion
Gen3 x4, 12V
M.2 NVMe – slot 1
PCIe x2
M.2 NVMe – slot 2
PCIe x1
USB-C
2x Gen 3.0 (inc. recovery)
USB-A
1x Gen 3.0
Ethernet
1x Gigabit
HDMI Output
Optional via extender
I/O & power
Battery connector
Yes
Fan connector
4-pin (Jetson heatsink)
Expansion header
38-pin (GPIOs, UART, SPI, I2C, I2S)
Fuse
1x
Input voltage
12-19 V
Power consumption
Module + PCIe card dependent
Mechanical
Dimensions (L × W)
118 x 87 mm
Height (board only)
22.5 mm
Weight (board only)
93 g
Mounting holes
4x M3 – see mechanical drawing
Operating temperature
0 to 50 °C (ambient, system dependent)
General
Form factor
Compact carrier board
Compatible modules
All NVIDIA Jetson Orin NX & Nano
Designed & assembled
France
OS support
Ubuntu 22.04 (JetPack)
Certifications
CE marking
NVIDIA Jetson Module
The CH-007 supports all NVIDIA Jetson Orin NX and Orin Nano modules. AI performance and memory capacity depend on the selected module.
Module
CPU Cores
GPU Cores
AI Perf.
HW Encoder
HW Decoder
TDP
Orin NX 16 GB
8× Cortex-A78AE
1024 CUDA / 32 Tensor
157 TOPS
4K60 H.265
8K30 H.265
10W – 40W
Orin NX 8 GB
6× Cortex-A78AE
1024 CUDA / 32 Tensor
117 TOPS
4K60 H.265
8K30 H.265
10W – 40W
Orin Nano 8 GB
6× Cortex-A78AE
1024 CUDA / 32 Tensor
67 TOPS
–
4K60 H.265
7W – 25W
Orin Nano 4 GB
6× Cortex-A78AE
512 CUDA / 16 Tensor
34 TOPS
–
4K60 H.265
7W – 25W
Specifications are based on NVIDIA datasheets. TDP values reflect configurable power modes. The Jetson Orin Nano series does not include hardware video encoding (NVENC); video encoding must be performed using CPU-based software solutions (e.g. FFmpeg/libx264). Refer to official NVIDIA documentation for complete specifications.
What you can build
The CH-007 is a general-purpose edge AI platform. Here is what becomes possible when you combine it with a camera and the right model.

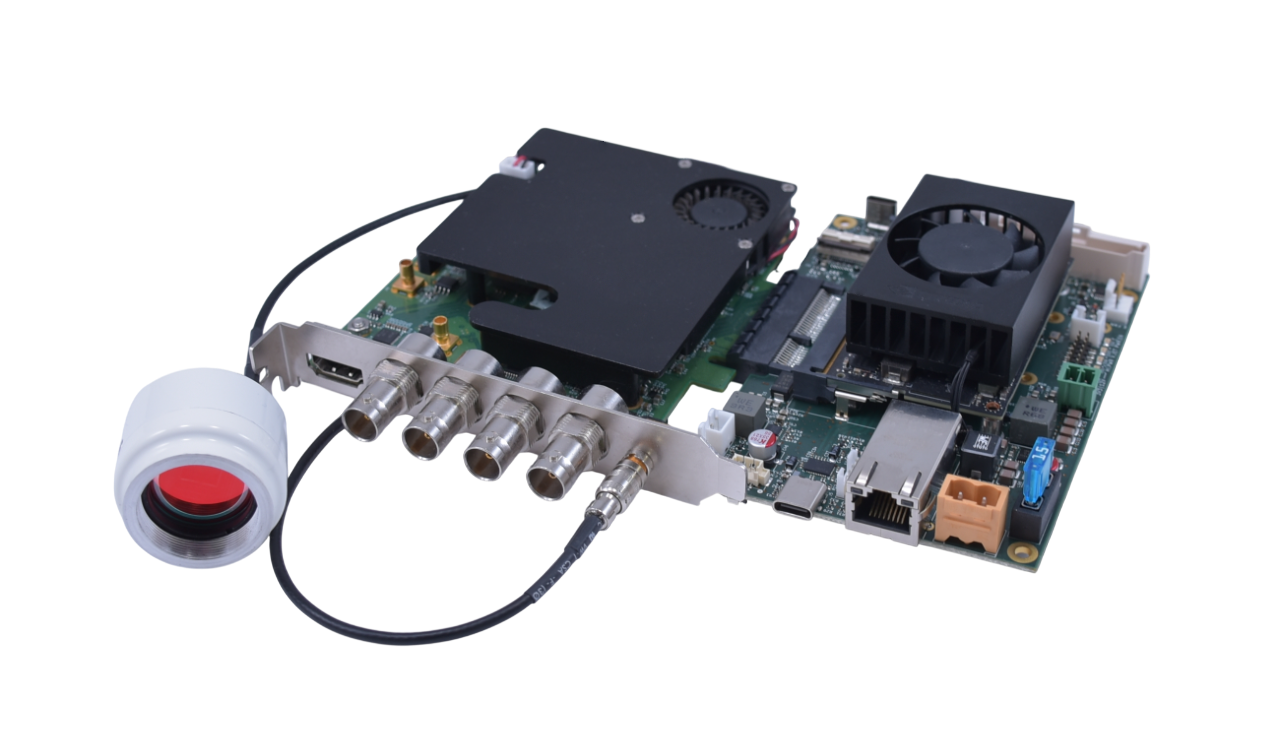

CH-007 + CV-420 — a complete embedded vision platform

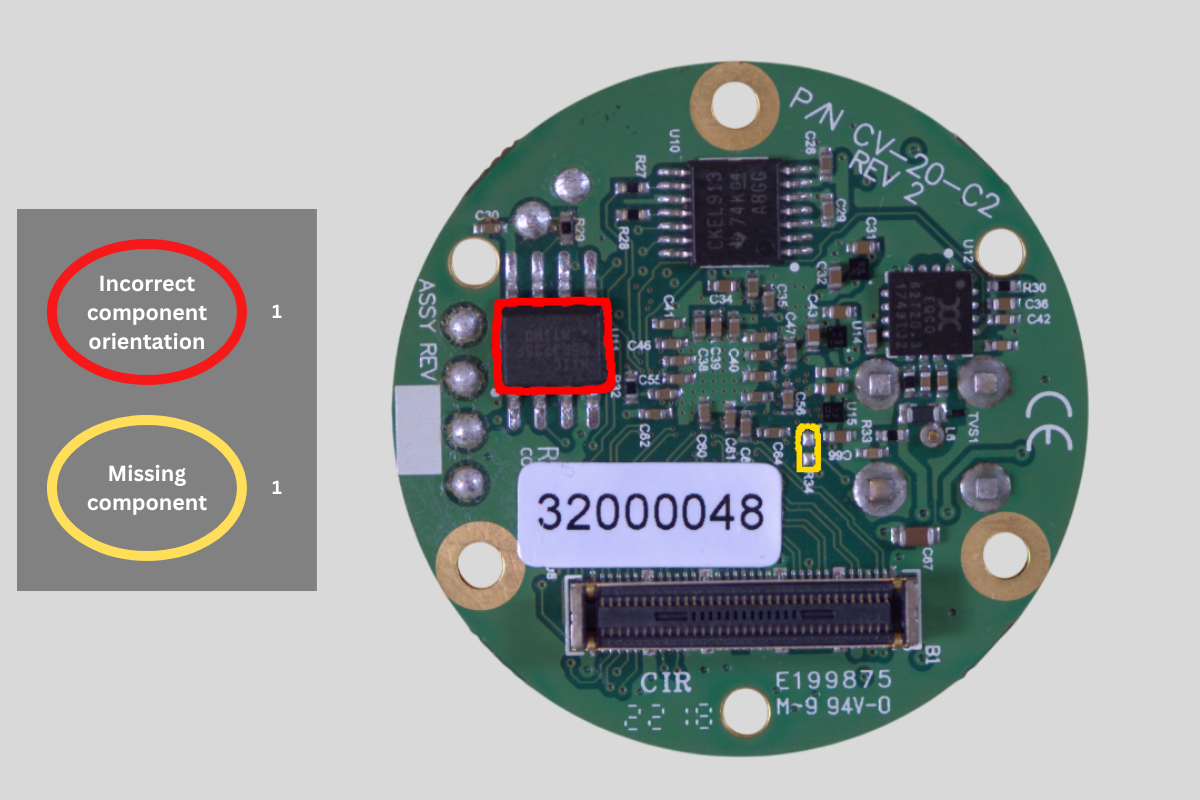

Electronic board inspection
Identify defective components on a production line — missing parts, wrong orientation, soldering anomalies. With the right vision model, the CH-007 gives you the compute foundation to build your own AOI system.

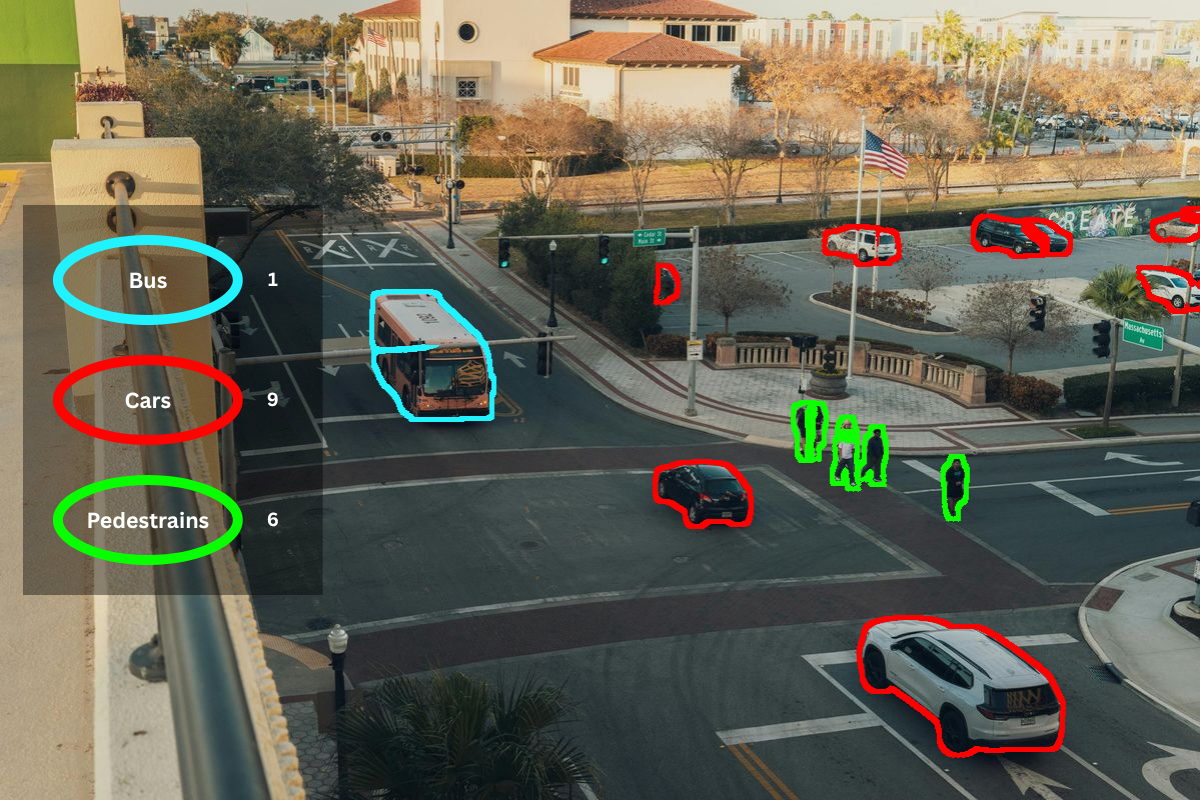

Traffic analysis
Imagine a system that counts and classifies road users in real time — vehicles, buses, pedestrians — processed locally at the edge, without cloud dependency or network infrastructure.
