CV-420
Compact remote head 4K camera with 10-bit image performance

The CV-420 is designed for integrations where space at the optical point is critical, such as microscopy and embedded imaging systems. Its remote head architecture separates a compact 4K sensor block from the processing unit, delivering native 4Kp60 10-bit imaging within the Enciris software environment.

Native Ultra HD 4Kp60 video capture with 10-bit color depth
Advanced auto-exposure and de-noise processing for consistent image quality
Compact remote head form factor for tight spaces and embedded systems
Standard C-Mount/CS-Mount lens compatibility
Designed for 24/7 continuous operation in demanding environments

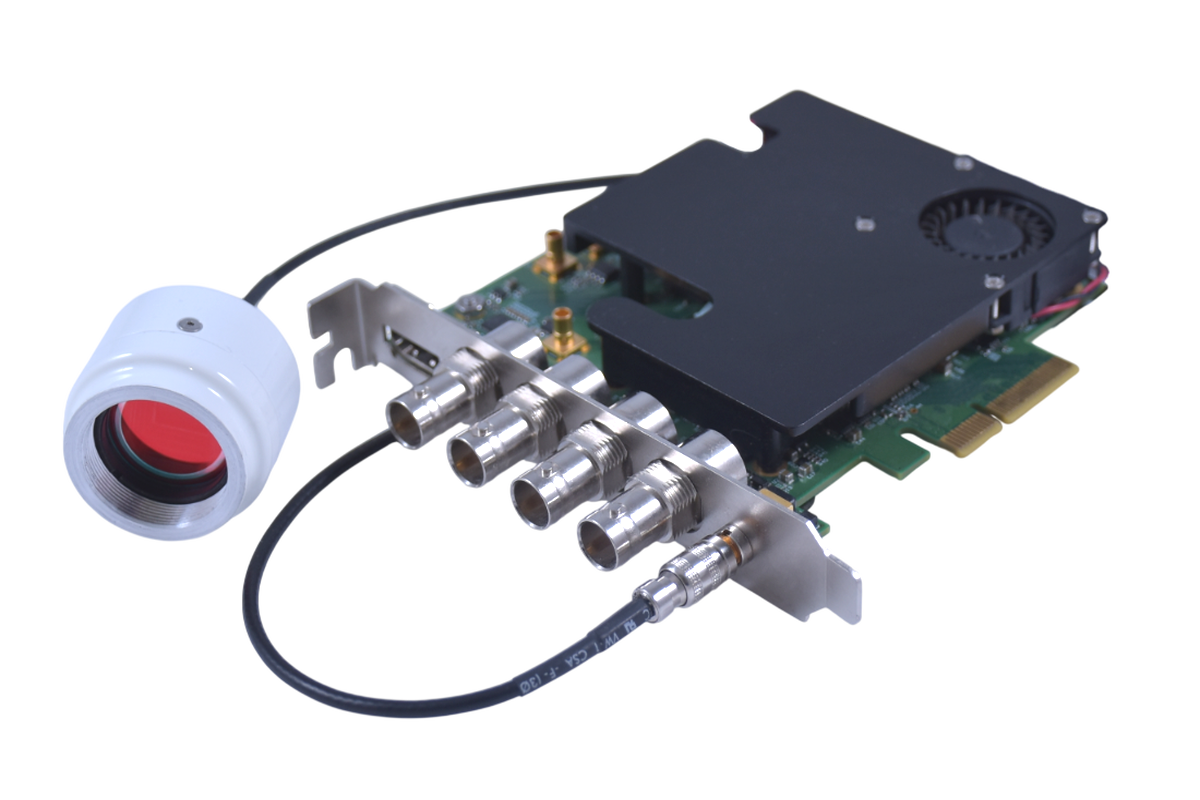

Enciris CV-420 4K camera platform remote head imaging system for medical and industrial applications

Specifications and Features

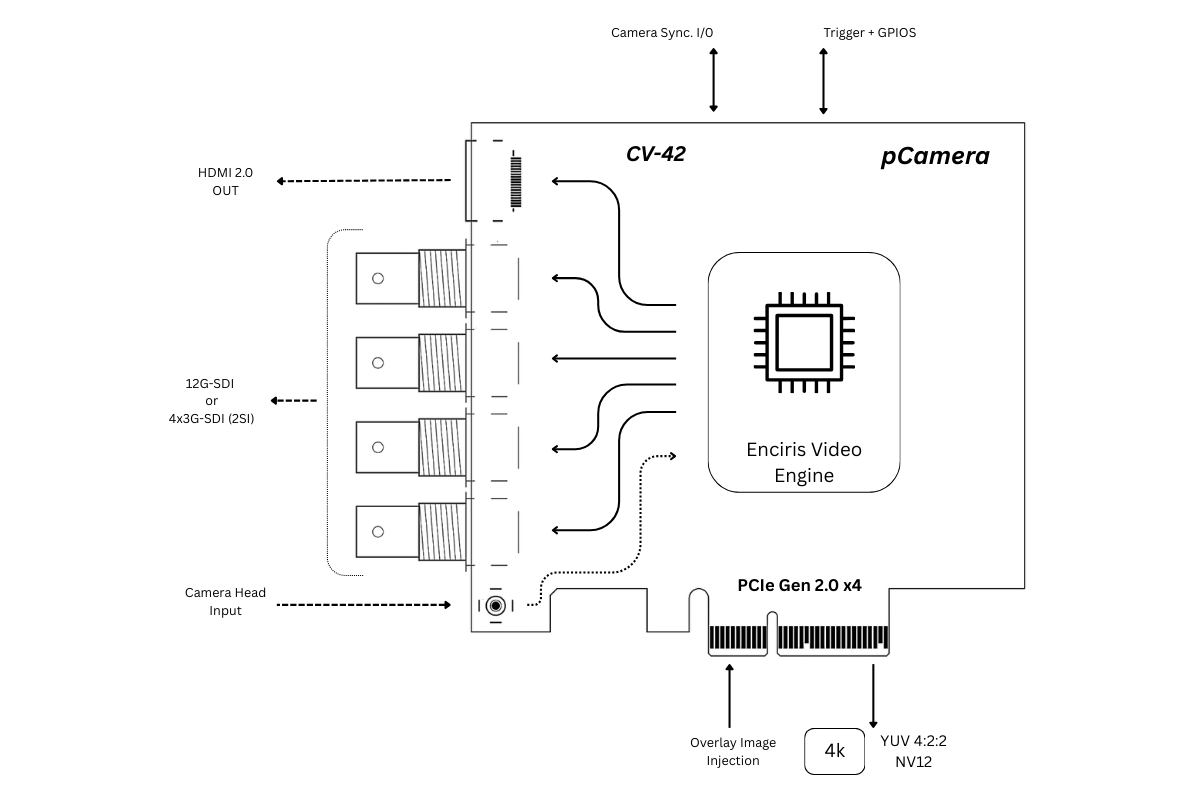

Interface

Inputs:

CoaxExpress connector for remote camera head using proprietary protocol
GPIOs

Outputs:

4x 3G/12G SDI
Legacy 4Kp60 support via 4× 3G-SD (2SI mode)
1x HDMI 2.0
Single real-time overlay, independently enabled per output

Host:

PCIe Gen2 x4 or higher
Multiplecards per system

Video Engine

Software Reconfigurable Hardware (SRH)
Common exposure controls (analog and digital gain, shutter, automatic exposure)
White balance and color adjustments (HSBC, Gamma, and more)
Visual enhancements including tone mapping, sharpness, zoom, and more
Color Space Conversion
Flexible real-time compositing and overlay support
10-bit internal video processing

Signals

Up to 4K at 60Hz for acquisition and outputs
HDMI output: RGB 4:4:4 or YUV 4:4:4 (8-bit), YUV 4:2:2 (12-bit)
SDI output: YUV 4:2:2 (10-bit)
Native acquisition formats: RAW Bayer, YUV 4:2:2, NV12
Video timecode support

Physical and environmental

Control Camera Unit:

94 × 100 mm, 1-slot PCIe bracket, ~265 g
12 W typical (included camera head)
Powered from PCIe slot
Operating: 0 °C to 60 °C (extended options available)

Camera Head:

38 x 41 x 30 mm, ~74 g
Powered via CCU
Satndard C-mount

Software

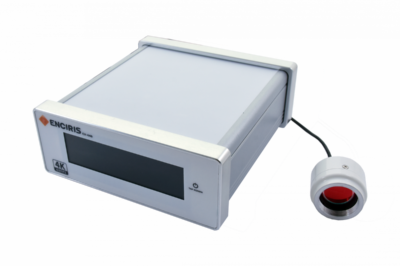

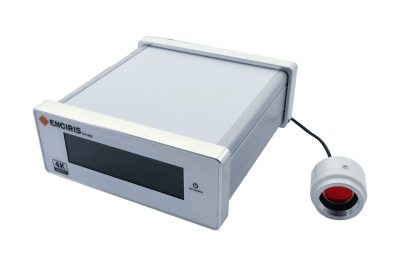

Shared across the CV-400 series: a common 4K imaging pipeline with exposure, color and enhancement controls. The CV-420 integrates through the Enciris software environment — Windows and Linux, SDK and REST API, reference clients in Go, C++ and Python, CLI — while the CV-440 operates fully standalone with touchscreen control.
