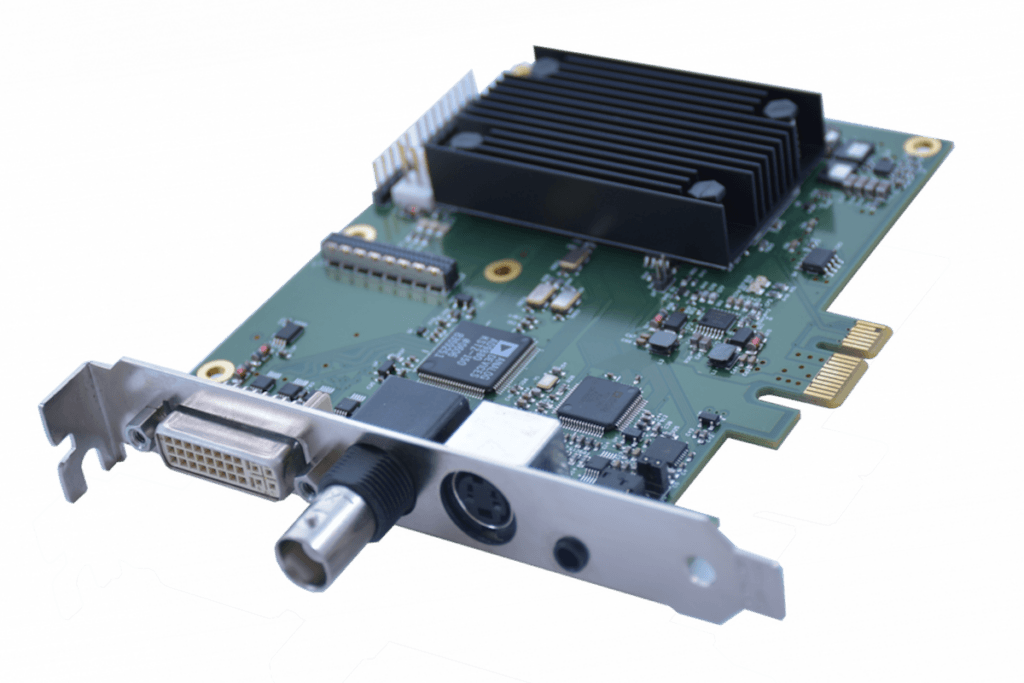

LT-102
Analog & digital capture card with hardware compression

The LT-102 is designed for systems that combine legacy analog and digital video sources. It pairs multi-format acquisition (DVI, VGA, S-Video, composite, optional SDI) with real-time H.264 hardware compression on a compact PCIe card, keeping host CPU load minimal.

  • Supports DVI-I and analog video inputs (Composite, S-Video)
  • Real-time H.264 hardware compression
  • From 1920x1080p60 down to 720x480i
  • USB connectivity
  • High reliability, 24/7 operation
  • Optional SDI input daughterboard
1150

€, single unit

Specifications and Features

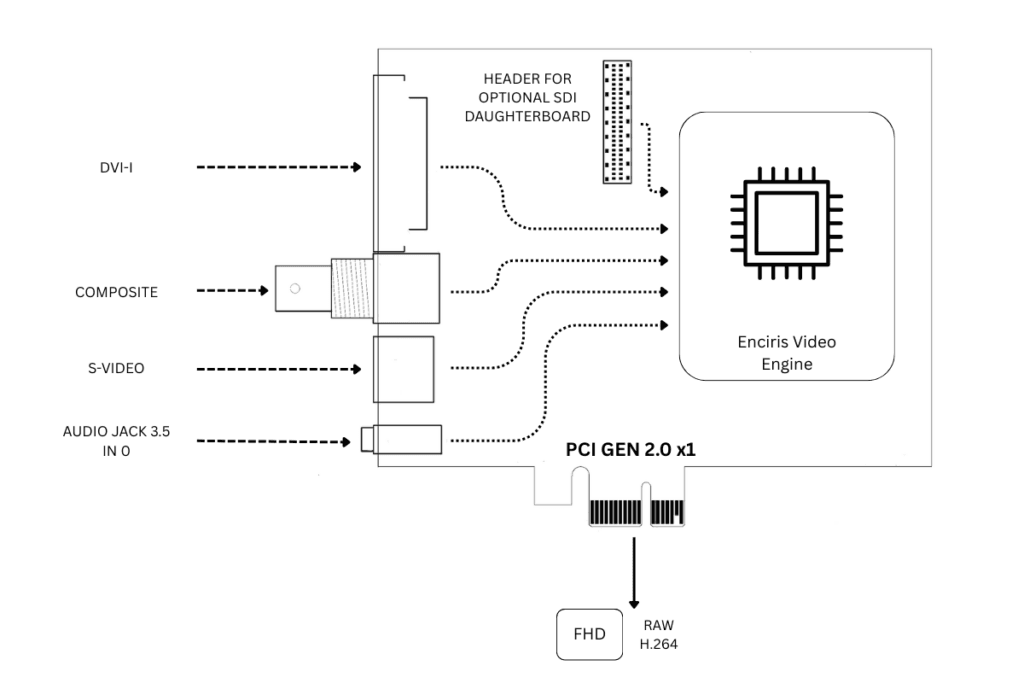

Interface

Inputs:

  • DVI-I (digital DVI-D and analog VGA/RGB)
  • S-video
  • Composite video
  • 3.5 mm audio jack
  • 3G-SDI (optional)


Host:

  • PCIe Gen2 x1 or higher
  • Multiple LT-100 cards per system for scalable expansion

Video Engine

  • Real-time hardware-based video compression
  • Simultaneous uncompressed video capture
  • Advanced hardware deinterlacing
  • Hardware video preprocessing prior to compression:
    • Downscaling
    • Noise reduction
    • HSBC
    • Text overlay
  • Configurable compression parameters (bitrate control, GOP, …)

Signals

  • Support for broadcast standards from SD (PAL, NTSC) up to 1080p60
  • Progressive and interlaced formats supported
  • Support for selected VESA CVT and GTF timing standards
  • Extended resolution support available on request
  • Automatic input format detection
  • 2-channels audio PCM, 48 kHz

Physical and environmental

  • 91 × 110 mm, 1-slot PCIe bracket, ~140g
  • 6 W typical, powered from PCIe slot
  • Operating: 0 °C to 70 °C (extended options available)
  • CE certified, 2-year warranty

Software

Shared across the entire LT-100 series: Windows and Linux support, C SDK, DirectShow filter with configuration application, and a demo renderer application.

Downloads

Product Brief r3

735 KB | 02/12/2026

API Programmer Guide

4 MB | 02/12/2026

SDK 2.91.2

Windows: 111 KB | Linux: 3 MB

Installer 2.91.2

Win x64: 12 MB | Win x86: 13 MB | Linux: 11 MB
