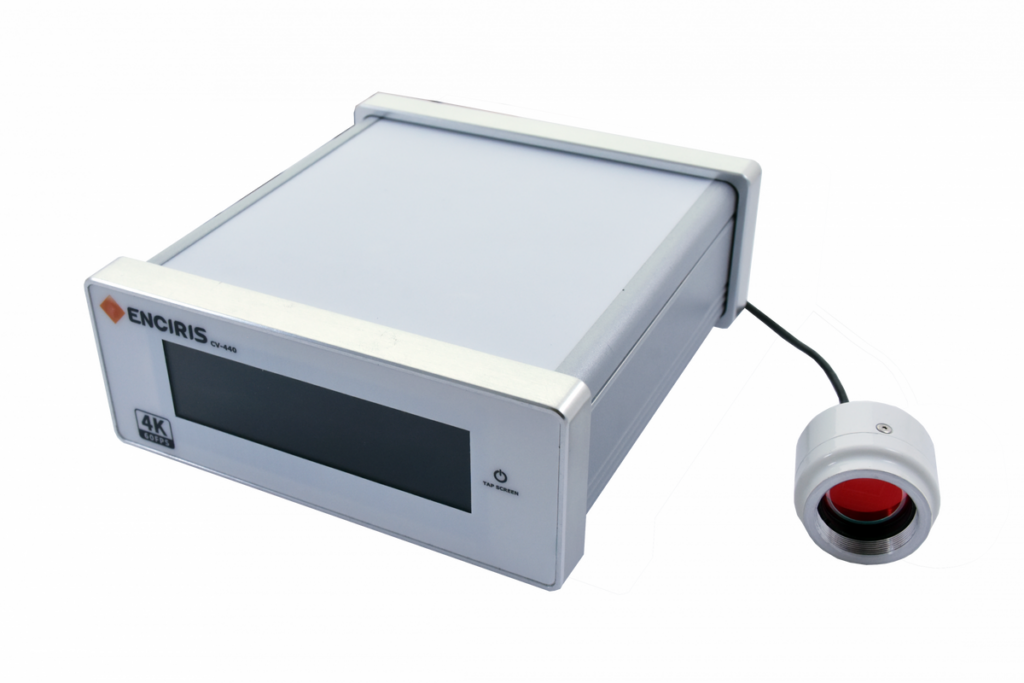

CV-440

Stand-alone 4Kp60 camera system with touchscreen control

The CV-440 is a professional stand-alone Ultra HD 4K camera system engineered for demanding imaging applications. Featuring native 4Kp60 10-bit video, multiple SDI and HDMI outputs, and integrated controls, it delivers reliable high-quality imaging for microscopy, industrial, and medical workflows.

  • Native 4Kp60 capture with 10-bit video processing pipeline
  • Multiple SDI and HDMI outputs for flexible integration
  • Built-in touchscreen for configuration and control
  • Advanced exposure, color adjustment, and visual enhancements
  • Designed for continuous 24/7 professional operation

Pricing (single unit):

Specifications and Features

Interface

Input:
  • CoaxExpress connector for remote camera head using proprietary protocol
  • GPIOs

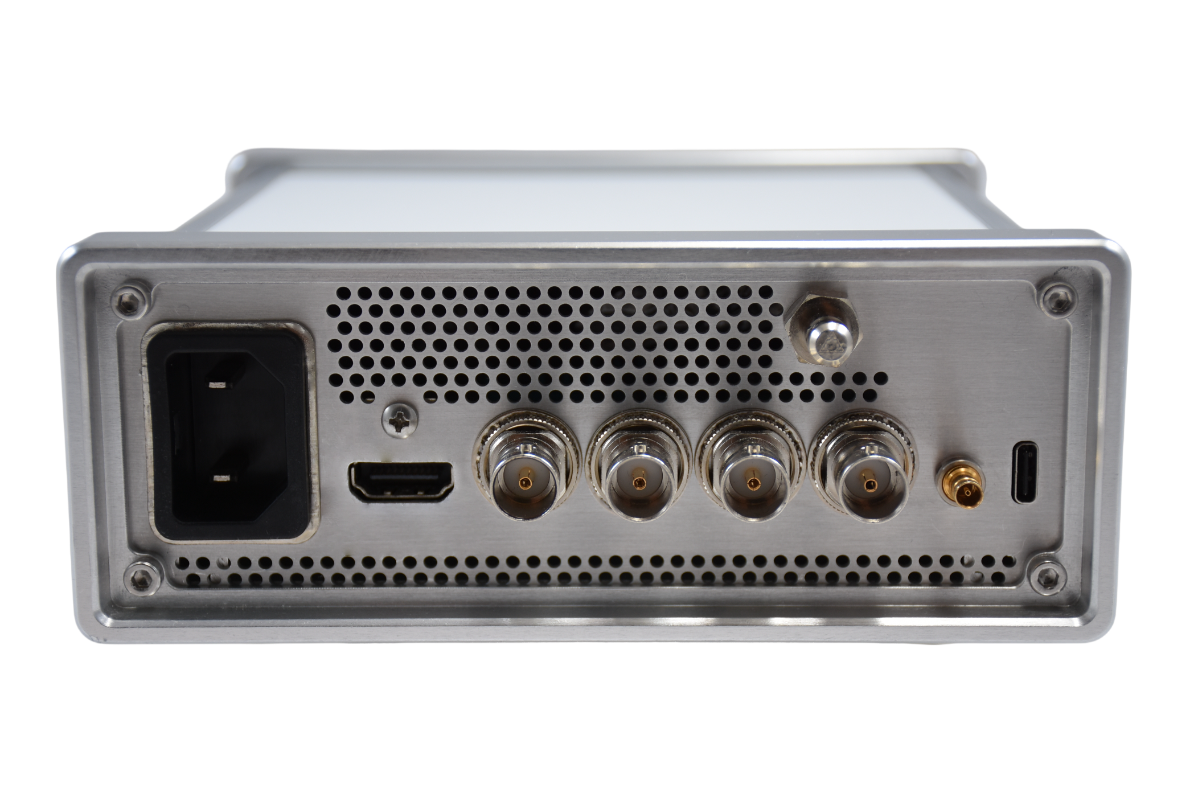

Outputs:
  • 4x 3G/12G SDI
  • Legacy 4Kp60 support via 4Γ— 3G-SD (2SI mode)
  • 1x HDMI 2.0

User:
  • Integrated touchscreen for local configuration and control

Video Engine

  • Native 4Kp60 video processing
  • Common exposure controls (analog and digital gain, shutter, automatic exposure)
  • White balance and color adjustments (HSBC, Gamma, and more)
  • Visual enhancements including tone mapping, sharpness, zoom, and more
  • Color Space Conversion
  • 10-bit video processing pipeline

Signals

  • Up to 4K at 60Hz on all video outputs
  • HDMI output: RGB 4:4:4 or YUV 4:4:4 (8-bit), YUV 4:2:2 (12-bit)
  • SDI output: YUV 4:2:2 (10-bit)

Software

  • Fully stand-alone operation, no external host required
  • Ultra-compact and low-power design
  • Suitable for continuous 24/7 operation in professional environments
  • Extended temperature operation

Downloads

ProductBrief

SDK

Product Brief

8 MB | 02/11/2026

Documentation 1.3.3

3 MB | 02/11/2026

SDK 1.3.3

Windows: 2 MB | Linux: 5 MB

Installer 1.3.3

Windows: 112 MB | Linux: 50 MB
