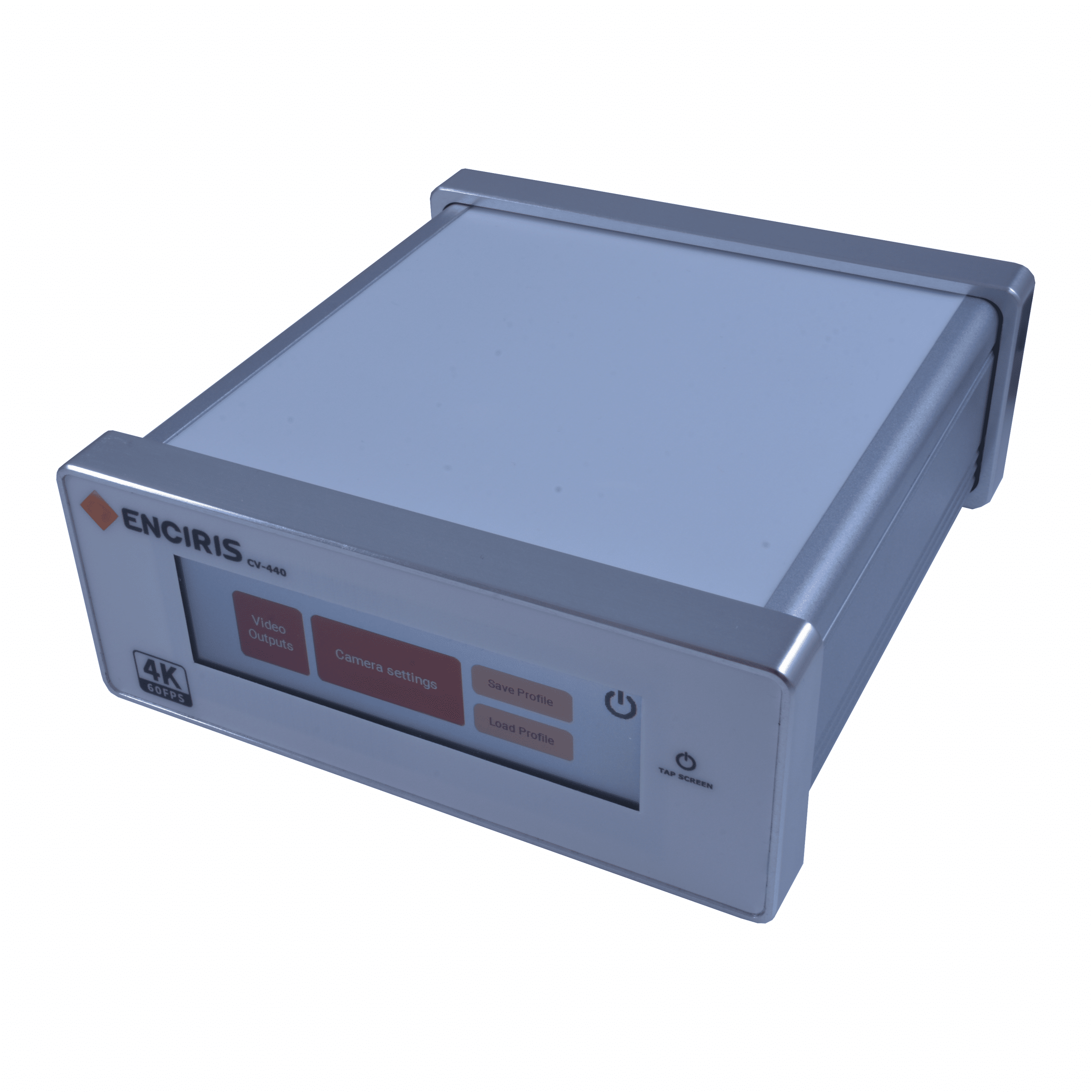

CV-440
Stand-alone 4K Camera System
- Native 4Kp60 10-bit video
- Auto exposure and color adjustments
- Multiple SDI/HDMI outputs
- Built-in touchscreen for local control
- High reliability, 24/7 operation
Specifications and Features
Interface
Input:
-
CoaxExpress connector for remote camera head using proprietary protocol
-
GPIOs
Outputs:
-
4x 3G/12G SDI
-
Legacy 4Kp60 support via 4× 3G-SD (2SI mode)
-
1x HDMI 2.0
User:
-
Integrated touchscreen for local configuration and control
Video Engine
-
Native 4Kp60 video processing
-
Common exposure controls (analog and digital gain, shutter, automatic exposure)
-
White balance and color adjustments (HSBC, Gamma, and more)
-
Visual enhancements including tone mapping, sharpness, zoom, and more
-
Color Space Conversion
-
10-bit video processing pipeline
Signals
-
Up to 4K at 60Hz on all video outputs
-
HDMI output: RGB 4:4:4 or YUV 4:4:4 (8-bit), YUV 4:2:2 (12-bit)
-
SDI output: YUV 4:2:2 (10-bit)
Software
-
Fully stand-alone operation, no external host required
-
Ultra-compact and low-power design
-
Suitable for continuous 24/7 operation in professional environments
-
Extended temperature operation
Driver
ProductBrief
SDK
v1.4.0
1.89 MB | 12/28/2025
Changelog:
Superior Video & Audio
Enhanced playback with advanced deinterlacing and interlaced video support for smoother visuals.
MP3 and AAC audio encoding enabled for expanded compatibility and higher-quality recordings.
Smarter File Management
New auto-increment file naming and safer split recording to prevent overwriting and make file management seamless.
Expanded support for flexible recording sizes and new audio formats.
Firmware & Compatibility
Robust updates and optimizations for LT311 players and DDR memory, allowing more reliable multi-stream HD operation.
Latest Windows and Ubuntu 24.04 driver/support for optimal integration with modern systems.
Developer Experience
Refined Python and C++ SDKs with improved documentation, updated code examples, and API standardization.
Easier device programming through new JTAG & UART integration.
Performance & Stability
Faster, more accurate audio pipelines, increased system stability, and bug fixes to core services.
FFmpeg integration expanded for smoother encoding and muxing workflows.
