CV-420

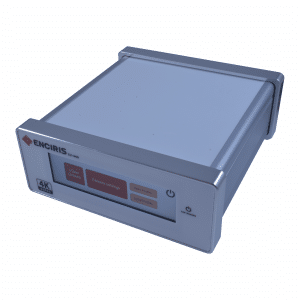

4K Remote head camera system with Camera Control Unit
- Native 4Kp60 10-bit video
- Auto exposure and color adjustments
- Multiple SDI/HDMI outputs
- Single overlay for all outputs
- Simultaneous capture, processing, and overlay
- High reliability, 24/7 operation
Specifications and Features
Interface
Input:
CoaxExpress connector for remote camera head using proprietary protocol
GPIOs
Outputs:
4x 3G/12G SDI
Legacy 4Kp60 support via 4Γ 3G-SD (2SI mode)
1x HDMI 2.0
Single real-time overlay, independently enabled per output
Host:
PCIe Gen2 x4 or higher
Multiple CV-40 series cards per system for scalable expansion
Video Engine
-
Field Upgradable Software Reconfigurable Hardware (SRH)
-
Common exposure controls (analog and digital gain, shutter, automatic exposure)
-
White balance and color adjustments (HSBC, Gamma, and more)
-
Visual enhancements including tone mapping, sharpness, zoom, and more
-
Color Space Conversion
-
Real-time overlay applied across all outputs
-
10-bit video processing pipeline
Signals
-
Up to 4K at 60Hz for acquisition and outputs
-
HDMI output: RGB 4:4:4 or YUV 4:4:4 (8-bit), YUV 4:2:2 (12-bit)
-
SDI output: YUV 4:2:2 (10-bit)
-
Native acquisition formats: RAW Bayer, YUV 4:2:2, NV12
-
Video timecode support
Software
Operating Systems:
Windows (10 and nezer) with native API and DirectShow support
Linux (Ubuntu 22.04 and newer, Debian 12 and newer)
Platforms:
AMD, Intel, ARM
Compression & Media:
H.264, H.265, MP4, JPEG and more
Internal use of FFmpeg within Enciris software stack
Developer Tools:
SDK and easy-to-use RESTful API
Reference client implementations provided as full source code in Go, C++ and Python
Command Line Interface (CLI) for quick evaluation
Demo application for rapid hardware and software testing
Downloads
ProductBrief
SDK
SDK 1.3.3
Windows: 2 MB | Linux: 5 MB
Installer 1.3.3
Windows: 112 MB | Linux: 50 MB
